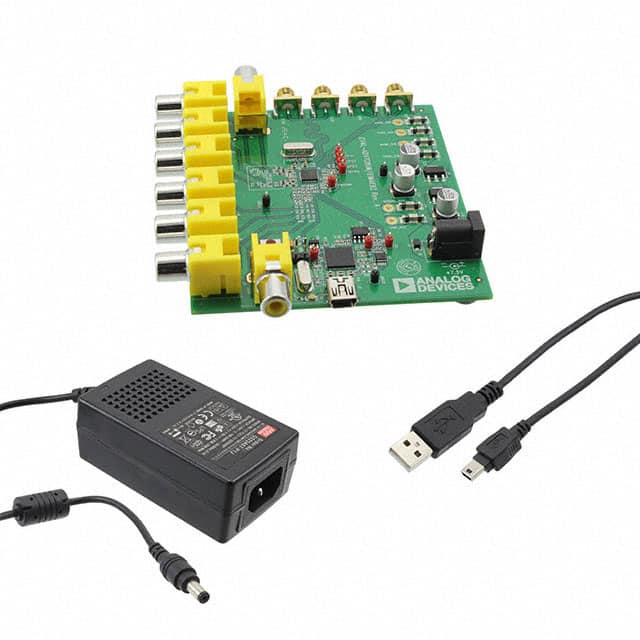

ADI EVAL-ADV7280MEBZ
Video recording V-Audio Modules ROHS
0 In stock
Delivery within 1 day
Better price for more quantity?| Attribute | Value |
|---|---|
| Mfr.Part.# | EVAL-ADV7280MEBZ |
| Manufacturer | ADI |
| Product Category | V-Audio Modules |
| RoHS | Yes |
| ECCN | EAR99 |
| Sensor type | Video recording |
| Package | - |
| Packaging | Box-packed |
| Standard Package | 1 |
| Weight | 1 |
High-quality video decoding: Compatible with multiple analog video formats like CVBS, S-Video, and YPbPr.
Multiple output formats: Supports digital video output in both ITU-R BT.656 and MIPI CSI-2 interfaces.
Easy development: Features plug-and-play compatibility with VisualDSP++ tools and third-party software.
Compact design: Optimized for quick prototyping in compact video processing systems.
Low power consumption: Provides energy-efficient operation suitable for portable devices.
Video surveillance: Capturing video feeds from analog CCTV cameras.
Automotive systems: Rearview cameras and in-car entertainment systems requiring analog video inputs.
Consumer devices: Applications like DVD players or set-top boxes with legacy analog output compatibility.
Industrial imaging: Capturing analog video in automation and monitoring systems.
Robotics: Vision systems for robots requiring real-time analog-to-digital video conversion.
Medical imaging: Enhancing the use of legacy cameras in diagnostic equipment.
Ensure proper analog input signal levels (1.0 Vpp for CVBS) to maintain optimal decoding performance.
Use appropriate filters and termination resistors for the input signals to minimize noise interference.
Consider the MIPI CSI-2 clock speed requirements for interfacing with image signal processors.
Ensure that the board operates within the recommended temperature range of -40°C to +85°C.
Use correct power supply voltage (3.3 V typical) as specified for stable board operation.
Q: Why can't I see any video output?
A: Ensure the input video signal is correctly connected and matches the supported analog format.
Q: Can I use the board with a custom MIPI receiver?
A: Yes, but ensure the MIPI CSI-2 timing and configuration match the receiver requirements.
Q: How do I configure the output format?
A: Use the provided software tools or set the appropriate register values for ITU-R BT.656 or MIPI output.
Q: Is support available for PAL and NTSC video formats?
A: Yes, the ADV7280M supports both PAL and NTSC standards automatically.
