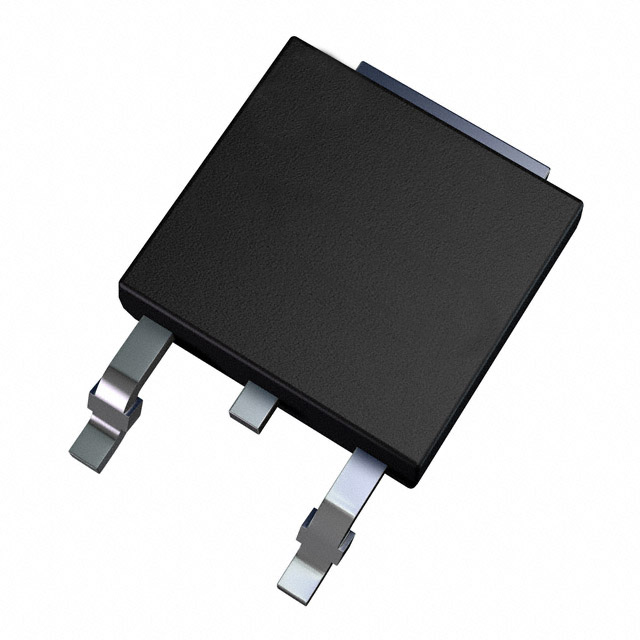

STMicroelectronics STD100NH02LT4
24V 60A 100W 4.8m@30A,10V 1.8V@250uA 1 N-Channel DPAK MOSFETs ROHS
0 In stock
Delivery within 1 day
Better price for more quantity?| Attribute | Value |
|---|---|
| Mfr.Part.# | STD100NH02LT4 |
| Manufacturer | ST |
| Product Category | MOSFETs |
| RoHS | Yes |
| ECCN | EAR99 |
| Power Dissipation (Pd) | 100W |
| Continuous Drain Current (Id) | 60A |
| Gate Threshold Voltage (Vgs(th)@Id) | 1.8V@250uA |
| Drain Source Voltage (Vdss) | 24V |
| Total Gate Charge (Qg@Vgs) | 84nC@10V |
| Input Capacitance (Ciss@Vds) | 3.94nF@15V |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 4.8mΩ@30A,10V |
| Package | DPAK |
| Packaging | Tape & Reel (TR) |
| Standard Package | 2500 |
| Weight | 0.476 |
