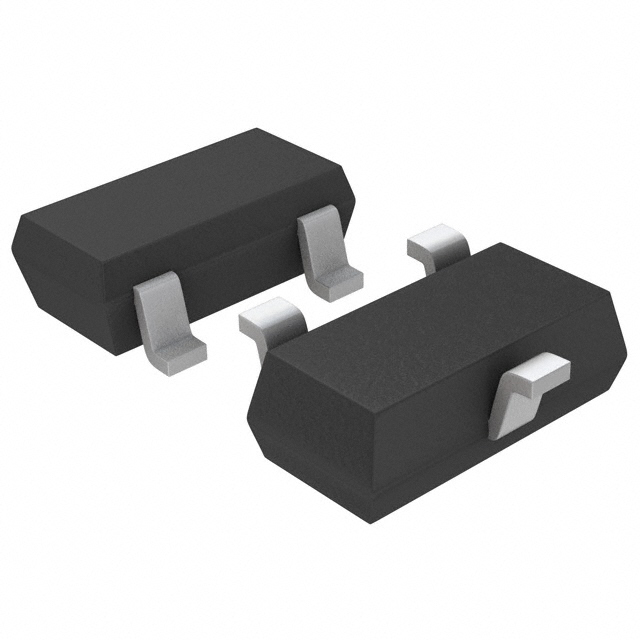

Microchip Tech KVX3901A-23-4/TR
27V 1 pair of common cathodes 32pF@3V,1MHz SOT-23 Diodes - Variable Capacitance ROHS
Copied!Copied!CM.Part.#:C84592296
Package:SOT-23
0 In stock
Delivery within 1 day
Better price for more quantity?| Attribute | Value |
|---|---|
| Mfr.Part.# | KVX3901A-23-4/TR |
| Manufacturer | MICROCHIP |
| Product Category | Diodes - Variable Capacitance |
| RoHS | Yes |
| ECCN | EAR99 |
| Operating Temperature | -55℃~+125℃ |
| Diode Configuration | 1 pair of common cathodes |
| Voltage - DC Reverse (Vr) (Max) | 27V |
| Diode Capacitance | 32pF@3V,1MHz |
| Package | SOT-23 |
| Packaging | Tape & Reel (TR) |
| Standard Package | 1000 |
| Weight | 1 |
